LIFT TRACTION MACHINE

We are a distinguished manufacturer and supplier of Lift Traction Machine that is applicable in construction and industrial sectors. Offered machine is manufactured using high grade components under the guidance of skilled professionals in compliance with the set quality standards. The offered range of Lift Traction Machine is highly appreciated for its sturdy construction, high performance, optimum strength, easy installation and longer functional life. We offer this machine in different specifications to fulfill the diverse needs of clients at most affordable price.

Technical Specifications:

Unit	RE-5	RE-6	RE-7	RE-8	RE-9	RE-12
Gear Box Centre	5	6	7	8	9	12
Ratio	40:1	40:1	42:1	41:1	41:1	42:1
Motor HP	5	7.5	10	12.5	15	40

Elevator Compact Gear Machine

We are one of the most eminent names in the industry engaged in manufacturing and supplying a quality range of High Power Elevator Traction Machine Lift Machine. these range are checked on strict industrial parameters to ensure better functionality. These machines can be customized following the specific details of our valued clients. clients can purchase these products from us at cost effective rates.

Technical Specifications:

Unit	Ribiyan -125	Ribiyan-125-R1
Gear Box Centre	125mm	125mm
Ratio	41:1	41:1
Motor HP	5	7.5
Motor RPM	960	960
Brake size	10"	10"
Brake Coil	{ 55 vdc + 55 vdc}	{ 55 vdc + 55 vdc}
Main Sheave	21", 22"	21", 22"
Over speed Governor Set	Standard	Standard

Elevator drum machine

With the assistance of our talented team of professionals, we are providing a high quality range of Elevator Drive Machine.

Specifications:

1.Usage: To drive elevator 2.Power source: Electric

Features:

1.Trouble-free functionality 2.Sturdiness 3.Easy maintenance

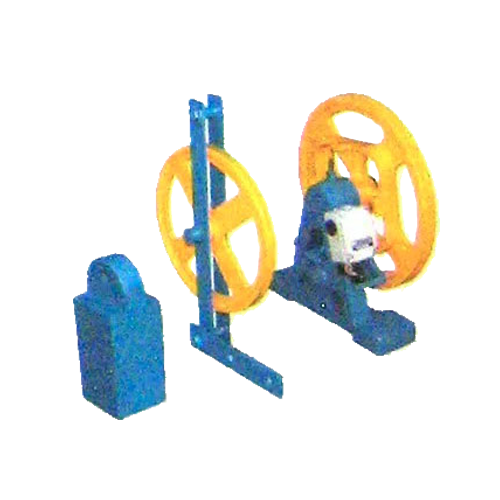

Over Speed Governors

We offer our client an excellent quality range of Over Speed Governors, which are manufactured from high grade quality raw materials. These Over Speed Governors can be customized as per our precious customers specifications. These Over Speed Governors are widely known for its durability and quality. Our Over Speed Governors can be availed at industrial leading price.

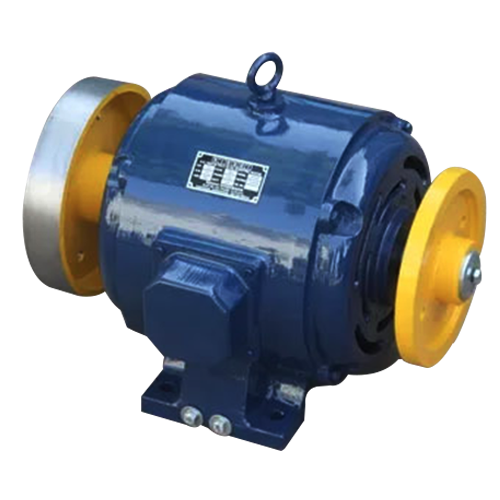

Lift Duty Motors

We offer our client an excellent quality range of Lift Duty Motors, which are manufactured from high grade quality raw materials. These Motors can be customized as per our precious customers specifications. These Motors are widely known for its durability and quality. Our Motors can be availed at industrial leading price.

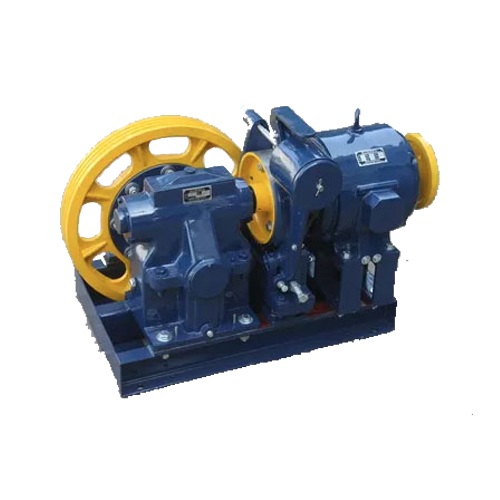

Lift Traction Units

Our Lift Units have been designed for special lift purpose where silence, smoothness & trouble free operation are of most necessary importance.

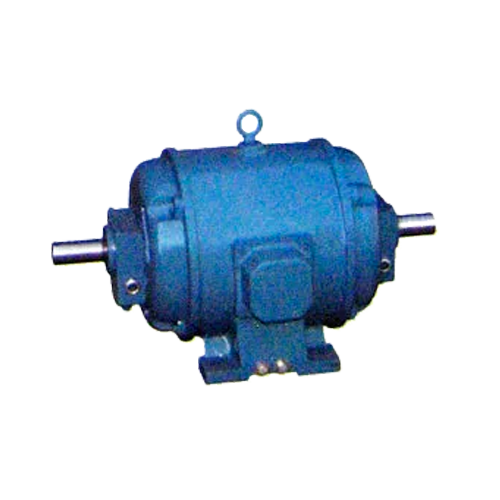

Electric Motors

Features:

• Motors are specially designed for smooth starting & silent operation of lift as per IS 8151.
• Motors give high starting torque & low starting current.
• Motor is of double cage copper bars & dynamically balanced.
• Motor runs smoothly and sparklessly under load up to its maximum capacity in either direction with ample power to deal with the occasional over load.
• Motors are suitable for 120 starts per hour.
• We recommend 20 W 40 oil for motors.

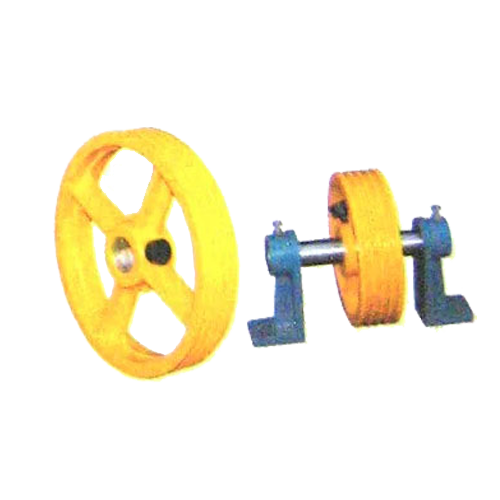

Deflector-Sheaves

We offer our client an excellent quality range of Deflector Sheaves, which are manufactured from high grade quality raw materials. These Deflector Sheaves can be customized as per our precious customers specifications. These Deflector Sheaves are widely known for its durability and quality. Our Deflector Sheaves can be availed at industrial leading price.
